A1 / A2 Cable Glands
Application:
For use with all unarmoured cables with rubber outer sheath. Secures the outer sheath of the cable. The displacement seal concept makes it suitable for indoor and outdoor applications.
Design Features: Outer displacement seal.
Compliant with BS 6121-1: 2005, BS EN 62444: 2013.
Material: Brass
Ingress Protection: IP 66
Plating: Nickel, Chrome on request.
Parts of Glands
Brass CBSCACk Nut
Brass Gland Body
Rubber Inner Seal
LD Washer
Brass Compression Nut

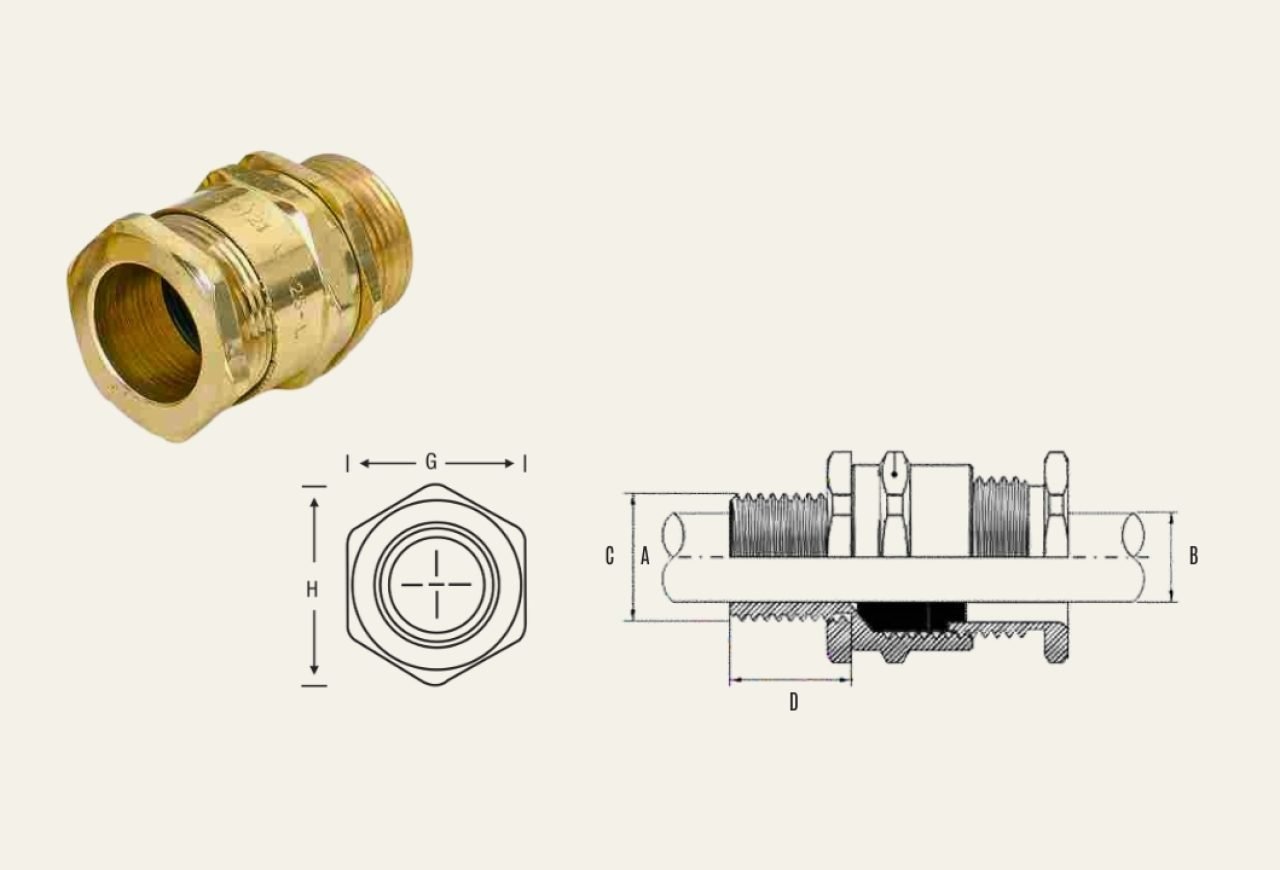

Specification Table :
| Size | Cable Overall Dia (mm) | A Dia (mm) | B Dia (mm) | C Nipple Entry Thread | D Length (mm) | G A/F (mm) | H A/C (mm) | Product Code |
|---|---|---|---|---|---|---|---|---|
| 16S | 3.50 - 8.00 | 9.25 | 12.50 | M16 X 1.5 | 10.00 | 22.00 | 24.75 | BA2 - 16S |
| 16L | 3.50 - 9.00 | 9.25 | 12.50 | M16 X 1.5 | 10.00 | 22.00 | 24.75 | BA2 - 16L |
| 20S | 8.00 - 11.50 | 12.50 | 12.50 | M20 X 1.5 | 10.00 | 22.00 | 24.75 | BA2 - 20S |
| 20L | 11.00 - 14.00 | 14.75 | 15.50 | M20 X 1.5 | 10.00 | 24.00 | 26.75 | BA2 - 20L |
| 25S | 12.00 - 17.50 | 19.00 | 20.00 | M25 X 1.5 | 15.00 | 27.50 | 30.50 | BA2 - 25S |
| 25L | 14.00 - 20.50 | 20.75 | 22.00 | M25 X 1.5 | 15.00 | 30.00 | 33.00 | BA2 - 25L |
| 32S | 17.00 - 22.50 | 23.00 | 24.50 | M32 X 1.5 | 15.00 | 34.75 | 37.50 | BA2 - 32S |
| 32L | 19.00 - 26.50 | 26.75 | 28.00 | M32 X 1.5 | 15.00 | 38.50 | 42.00 | BA2 - 32L |
| 40S | 24.00 - 29.50 | 32.00 | 32.50 | M40 X 1.5 | 19.00 | 42.50 | 47.50 | BA2 - 40S |
| 40L | 25.00 - 33.00 | 34.50 | 34.50 | M40 X 1.5 | 19.00 | 45.50 | 50.50 | BA2 - 40L |
| 50S | 32.00 - 39.00 | 41.50 | 41.50 | M50 X 1.5 | 19.00 | 55.50 | 61.50 | BA2 - 50S |
| 50L | 37.00 - 44.00 | 45.00 | 45.50 | M50 X 1.5 | 19.00 | 61.75 | 67.50 | BA2 - 50L |
| 63S | 43.00 - 50.00 | 53.00 | 54.50 | M63 X 1.5 | 19.00 | 67.25 | 74.25 | BA2 - 63S |
| 63L | 48.00 - 56.00 | 56.50 | 56.50 | M63 X 1.5 | 19.00 | 71.00 | 78.50 | BA2 - 63L |
| 75S | 54.00 - 59.00 | 62.00 | 62.00 | M75 X 1.5 | 20.00 | 77.00 | 84.50 | BA2 - 75S |
| 75L | 59.00 - 67.50 | 68.00 | 70.00 | M75 X 1.5 | 20.00 | 85.50 | 95.25 | BA2 - 75L |
| 90S | 66.00 - 78.00 | 82.50 | 82.50 | M90 X 1.5 | 20.00 | 99.75 | 111.50 | BA2 - 90S |
| 90L | 68.00 - 80.00 | 82.50 | 82.50 | M90 X 1.5 | 20.00 | 99.75 | 111.50 | BA2 - 90L |
