BW Cable Gland (4 Part)
Application:
For use with armoured or braided cables, it secures armouring & provides electrical continuity between armour & gland entry components mainly used in dry and indoor conditions.
Design Features:
Compliant with BS 6121 – 1: 2005,a 3-part armour lock
with cone and lock ring provided for additional grip to the armour.
Material: Brass
Ingress Protection: IP3X
Plating: Nickel, Chrome on request.
Also available in CIEL (Cast Integral Earth Lug). For orders add ‘C’ to
Prod. Code.

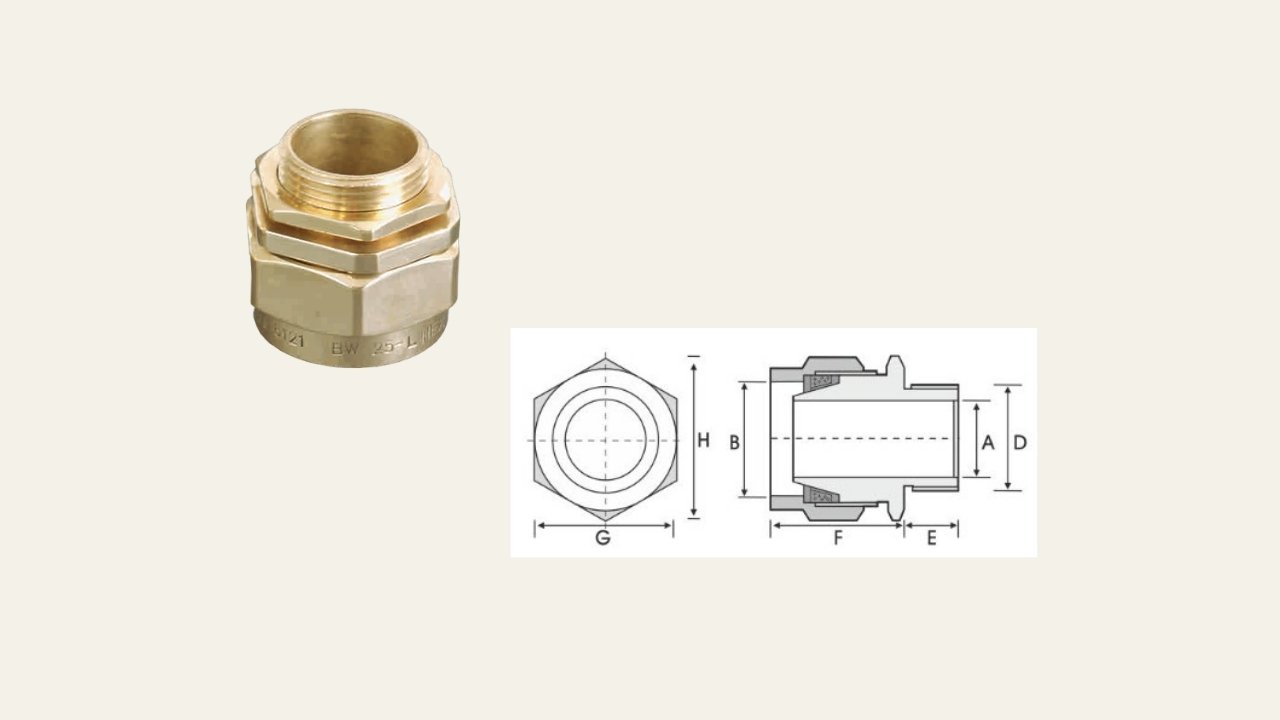

Specification Table :
| Size | Under Armour Dia A (mm) | Overall Dia B Max. | ISO Entry Thread (D mm) | Length (E mm) | Approx length on shoulder (F mm) | Hexagon Size Flat (G mm) | Hexagon Size (H mm) | Product Code |
|---|---|---|---|---|---|---|---|---|
| 16 S | 8.00 | 12.00 | M16 | 9.00 | 20.00 | 20.00 | 22.00 | BBW - 16 S |
| 16 L | 8.60 | 13.50 | M16 | 9.00 | 20.00 | 20.00 | 22.00 | BBW - 16 L |
| 20 S | 12.50 | 17.00 | M20 | 9.00 | 20.00 | 22.00 | 24.00 | BBW - 20 S |
| 20 L | 14.30 | 20.00 | M20 | 9.00 | 20.00 | 24.50 | 26.50 | BBW - 20 L |
| 25 S | 19.00 | 23.25 | M25 | 9.00 | 22.00 | 30.00 | 33.50 | BBW - 25 S |
| 25 L | 20.40 | 27.00 | M25 | 9.00 | 22.00 | 32.00 | 35.50 | BBW - 25 L |
| 32 S | 27.00 | 28.50 | M32 | 9.00 | 25.00 | 40.00 | 44.00 | BBW - 32 S |
| 32 L | 27.50 | 33.50 | M32 | 9.00 | 25.00 | 40.00 | 44.00 | BBW - 32 L |
| 40 S | 31.50 | 37.50 | M40 | 13.00 | 25.00 | 44.50 | 49.00 | BBW - 40 S |
| 40 L | 33.00 | 41.50 | M40 | 13.00 | 25.00 | 48.00 | 53.50 | BBW - 40 L |
| 50 S | 40.00 | 48.00 | M50 | 13.00 | 28.00 | 56.50 | 63.00 | BBW - 50 S |
| 50 L | 45.00 | 54.00 | M50 | 13.00 | 30.00 | 60.00 | 67.50 | BBW - 50 L |
| 63 S | 51.00 | 60.50 | M63 | 13.00 | 33.00 | 69.50 | 77.50 | BBW - 63 S |
| 63 L | 56.00 | 65.00 | M63 | 13.00 | 33.00 | 74.50 | 83.50 | BBW - 63 L |
| 75 S | 60.00 | 72.00 | M75 | 13.00 | 40.00 | 83.50 | 93.00 | BBW - 75 S |
| 75 L | 67.00 | 78.50 | M75 | 14.00 | 40.00 | 89.50 | 99.50 | BBW - 75 L |
| 90 S | 75.00 | 85.00 | M90 | 17.50 | 48.00 | 100.00 | 110.00 | BBW - 90 S |
| 90 L | 78.40 | 88.50 | M90 | 17.50 | 48.00 | 102.00 | 115.00 | BBW - 90 L |
