CW Cable Gland (4 Part)

Application:

For use with armoured cables, it secures armouring & provides electrical continuity between armour & gland entry components. It also provides a seal on the outer sheath of the cable, ensuring mechanical strength and no damage to the cable sheathing. With compression- type sealing techniques, these are used for both indoor and outdoor applications in all climate conditions as it is weatherproof & waterproof.

Design Features:

Compliant to BS 6121-1: 2005, a 4-part armour lock with cone and lock ring provided for additional grip to the
armour.

Ingress Protection: IP 66

Also available in CIEL (Cast Integral Earth Lug). For orders, add ‘C’ to
the product code.

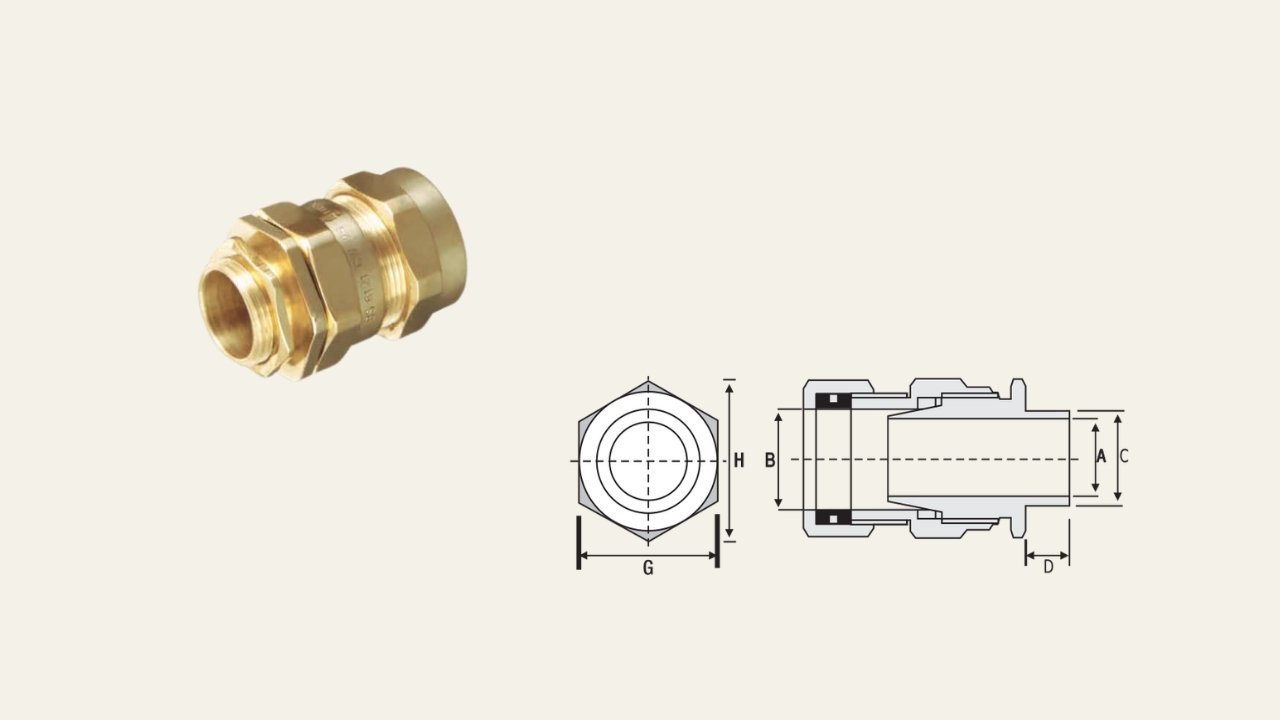

Specification Table :

Size	Under Armour Dia. A Max. (mm)	Overall Dia. B Max. (mm)	ISO Entry Thread D (mm)	Thread Length E (mm)	Approx Length from Shoulder F (mm)	Hexagon Size Across Flat G (mm)	Hexagon Size Corners H (mm)	Product Code
16 S	9.00	12.00	M16	10.00	40.00	20.00	22.00	HCW - 16 S
16 L	9.00	12.00	M16	10.00	40.00	20.00	22.00	HCW - 16 L
20 S	12.50	15.00	M20	10.00	42.00	22.00	24.00	HCW - 20 S
20 L	14.30	19.00	M20	10.00	42.00	26.00	29.00	HCW - 20 L
25 S	18.50	23.00	M25	10.00	44.00	32.00	36.00	HCW - 25 S
25 L	20.70	27.00	M25	10.00	44.00	35.00	38.00	HCW - 25 L
32 S	27.00	30.00	M32	11.00	46.00	42.00	45.50	HCW - 32 S
32 L	27.00	32.50	M32	11.00	46.00	42.00	45.50	HCW - 32 L
40 S	32.50	38.00	M40	13.00	50.00	49.50	55.00	HCW - 40 S
40 L	33.00	39.00	M40	13.00	50.00	57.00	62.00	HCW - 40 L
50 S	39.80	46.00	M50	13.00	57.00	62.50	69.00	HCW - 50 S
50 L	44.50	51.00	M50	13.00	57.00	62.50	69.00	HCW - 50 L
63 S	50.50	58.00	M63	14.00	70.00	72.00	78.50	HCW - 63 S
63 L	56.50	62.00	M63	14.00	61.00	77.00	84.00	HCW - 63 L
75 S	63.50	69.00	M75	14.00	65.00	83.50	90.00	HCW - 75 S
75 L	68.00	74.50	M75	15.00	66.00	91.00	100.00	HCW - 75 L
90 S	74.00	84.00	M90	17.00	80.00	100.00	110.00	HCW - 90 S
90 L	82.00	89.00	M90	17.00	82.00	102.00	114.00	HCW - 90 L
