Double Compression Type Cable Gland
Application:
Double Compression Weather and Flameproof Glands, also known as Double Compression W/F Glands, are specialized cable glands, commonly used in hazardous environments where protection against weather and flame is required. Double Compression Weather and Flameproof Glands are commonly used in areas of flammable gas or vapour.
Specification Table :

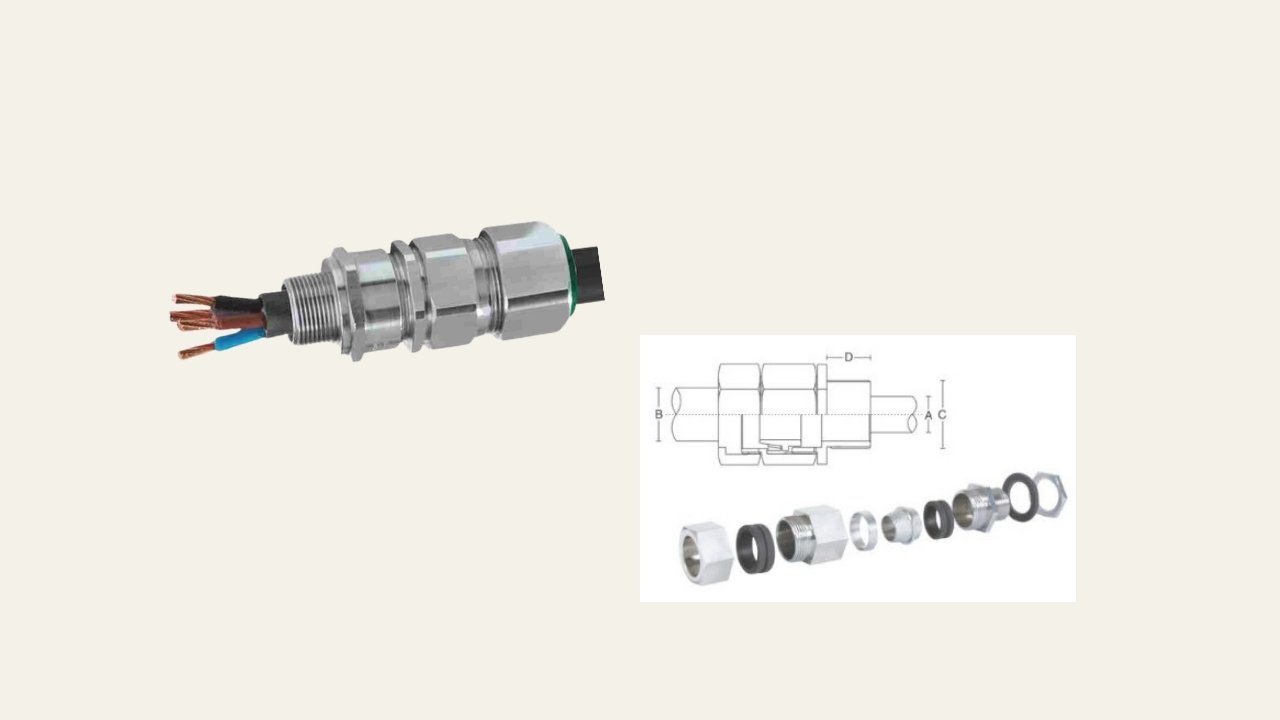

| GLAND SIZE | THREAD SIZE 'C' (INCH) | WEATHER PROOF THREAD 'D' (mm) | FLAME PROOF THREAD 'D' (mm) | CABLE RANGE MAX 'A' (mm) | CABLE RANGE MAX 'B' (mm) | Product Code |
|---|---|---|---|---|---|---|
| 01 SS | 3/4" | 15 | 25 | 8.00 | 12.00 | BDG-01SS |
| 01 S | 3/4" | 15 | 25 | 10.00 | 16.50 | BDG-01S |
| 01 | 3/4" | 15 | 25 | 12.00 | 18.00 | BDG-01 |
| 02 | 1" | 15 | 25 | 14.00 | 20.00 | BDG-02 |
| 02 A | 1" | 15 | 25 | 14.00 | 20.00 | BDG-02A |
| 03 | 1" | 15 | 25 | 17.00 | 23.00 | BDG-03 |
| 04 | 1" | 15 | 25 | 20.00 | 26.00 | BDG-04 |
| 05 | 1 1/4" | 15 | 25 | 24.00 | 30.00 | BDG-05 |
| 06 | 1 1/2" | 15 | 25 | 27.00 | 33.00 | BDG-06 |
| 07 | 2" | 15 | 25 | 30.00 | 37.00 | BDG-07 |
| 08 | 2" | 15 | 25 | 35.00 | 41.00 | BDG-08 |
| 09 | 2" | 15 | 25 | 40.00 | 46.00 | BDG-09 |
| 010 | 2" | 20 | 25 | 46.00 | 52.00 | BDG-010 |
| 011 | 2 1/2" | 20 | 25 | 54.00 | 60.00 | BDG-011 |
| 012 | 3" | 20 | 25 | 60.00 | 67.00 | BDG-012 |
| 013 | 3 3/4" | 20 | 25 | 72.00 | 78.00 | BDG-013 |
| 014 | 3 1/2" | 20 | 25 | 78.00 | 84.00 | BDG-014 |
| 015 | 4" | 20 | 25 | 88.00 | 94.00 | BDG-015 |
| 016 | 4 1/2" | 20 | 25 | 98.00 | 105.00 | BDG-016 |
