E1W Cable Glands
Application:
Suitable for all SWA extruded bedding cables requiring an IP66 or explosion-proof seal on both inner and outer sheaths.
Design Features: Compliant with BS 6121-1:2005 & BS EN 62444:2013. Features a 2-part armour/earth lock, knurled armour
lock for low resistance earth connection, and
inner/outer displacement seals. Rated IP66.
Material: Brass
Ingress Protection: IP 66
Plating: Nickel, Chrome on request.

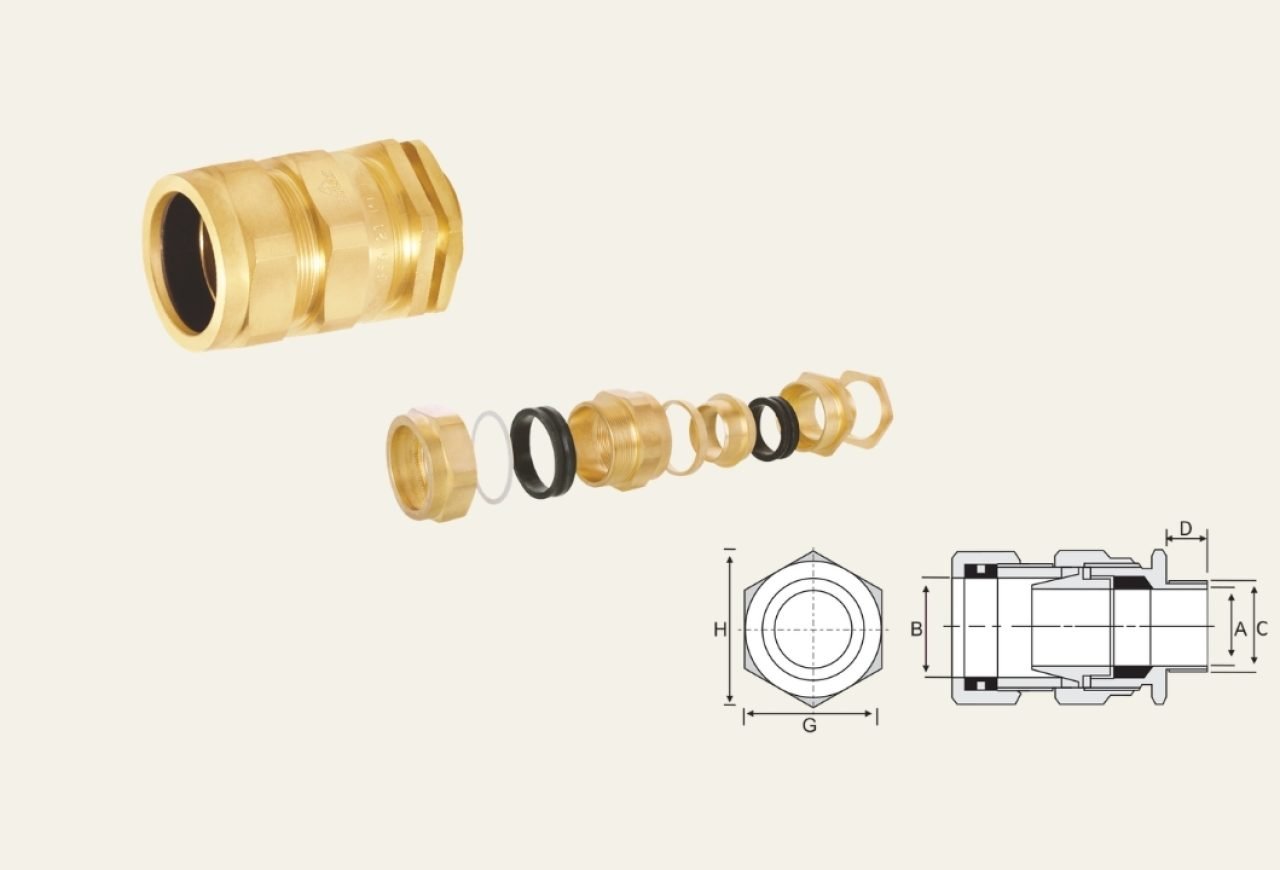

Parts of Glands
Brass CBSCACk Nut, Brass Gland Body
Rubber Seal (Inner Sheath), Brass Armour Cone
Brass Armour Ring, Brass Middle Body
Rubber Seal (Outer Sheath), Ld Ring
Brass Compression Nut
Specification Table :
| Size | Cable Overall Dia (From) | Cable Overall Dia (To) | A Dia (mm) | B Dia (mm) | C Nipple Entry Thread | D Length (mm) | G A/F (mm) | H A/C (mm) | Product Code |
|---|---|---|---|---|---|---|---|---|---|
| 20S | 12.00 | 16.00 | 12.00 | 16.00 | M20 X 1.5 | 10.50 | 22.00 | 24.00 | BEIW - 20S |
| 20L | 14.00 | 20.00 | 14.00 | 20.50 | M20 X 1.5 | 10.50 | 27.00 | 30.00 | BEIW - 20L |
| 25S | 18.00 | 24.00 | 18.50 | 25.00 | M25 X 1.5 | 10.50 | 32.50 | 35.00 | BEIW - 25S |
| 25L | 20.00 | 27.00 | 20.00 | 27.50 | M25 X 1.5 | 10.50 | 34.50 | 38.00 | BEIW - 25L |
| 32S | 24.00 | 31.00 | 24.00 | 32.00 | M32 X 1.5 | 10.50 | 39.00 | 43.50 | BEIW - 32S |
| 32L | 26.00 | 31.50 | 26.50 | 31.50 | M32 X 1.5 | 13.00 | 41.25 | 46.25 | BEIW - 32L |
| 40S | 30.00 | 38.50 | 31.50 | 42.00 | M40 X 1.5 | 15.00 | 46.50 | 51.00 | BEIW - 40S |
| 40L | 32.00 | 40.50 | 34.00 | 42.00 | M40 X 1.5 | 15.00 | 50.50 | 56.50 | BEIW - 40L |
| 50S | 38.00 | 46.00 | 40.00 | 47.00 | M50 X 1.5 | 15.00 | 57.00 | 64.00 | BEIW - 50S |
| 50L | 44.00 | 53.00 | 44.00 | 53.50 | M50 X 1.5 | 15.00 | 62.00 | 69.00 | BEIW - 50L |
| 63S | 50.00 | 59.00 | 52.00 | 60.50 | M63 X 1.5 | 15.00 | 70.00 | 79.00 | BEIW - 63S |
| 63L | 56.00 | 66.00 | 56.00 | 66.00 | M63 X 1.5 | 15.00 | 79.00 | 87.00 | BEIW - 63L |
| 75S | 62.00 | 72.00 | 62.00 | 72.00 | M75 X 1.5 | 15.00 | 84.00 | 95.00 | BEIW - 75S |
| 75L | 68.00 | 77.00 | 68.50 | 77.50 | M75 X 1.5 | 19.00 | 92.00 | 102.50 | BEIW - 75L |
